数据下载

选择pool

• 单pool直接请求对应pool
• 多个pool
  • 向所有pool发起对象查询请求，并对结果根据文件修改时间降序排列，如果时间相同则pool索引小的在前
  • 遍历结果，获取正常对象所在的pool信息（对应pool获取对象信息没有失败）

选择set

与上传对象类似，对对象名进行哈希得到具体存储的set

读元信息

• 向所有节点发起元数据读取请求，如果失败节点超过一半，则返回读失败
• 根据元数据信息确定对象读取readQuorum（datablocks大小，即数据块个数）
• 根据第一步返回的错误信息判断元数据是否满足quorum机制，如果不满足则会判断是否为垃圾数据，针对垃圾数据执行数据删除操作
• 如果满足quorum，则会校验第一步读到的元数据信息正确性，如果满足quorum机制，则读取元信息成功
• 如果第一步返回的信息中有磁盘掉线信息，则不会发起数据修复流程，直接返回元数据信息
• 判断对象是否有缺失的block，如果有则后台异步发起修复（文件缺失修复）

读数据

• 根据数据分布对disk进行排序
• 读取数据并进行ec重建
• 如果读取到期望数据大小但读取过程中发现有数据缺失或损坏，则会后台异步发起修复，不影响数据的正常读取
  • 文件缺失：修复类型为HealNormalScan
  • 数据损坏：修复类型为HealDeepScan

GetObjectNInfo

func (z *erasureServerPools) GetObjectNInfo(ctx context.Context, bucket, object string, rs *HTTPRangeSpec, h http.Header, opts ObjectOptions) (gr *GetObjectReader, err error) {// 单个SinglePoolobject = encodeDirObject(object)if z.SinglePool() {return z.serverPools[0].GetObjectNInfo(ctx, bucket, object, rs, h, opts)}....// 加读锁lock := z.NewNSLock(bucket, object)lkctx, err := lock.GetRLock(ctx, globalOperationTimeout)// 获取最新的objInfo, zIdxobjInfo, zIdx, err := z.getLatestObjectInfoWithIdx(ctx, bucket, object, opts)... // 错误返回objInforeturn &GetObjectReader{ObjInfo: objInfo,}, toObjectErr(errFileNotFound, bucket, object)// 去指定的 pool 获取对象 infogr, err = z.serverPools[zIdx].GetObjectNInfo(ctx, bucket, object, rs, h, opts)return gr, nil
} // GetObjectNInfo - returns object info and locked object ReadCloser
func (s *erasureSets) GetObjectNInfo(ctx context.Context, bucket, object string, rs *HTTPRangeSpec, h http.Header, opts ObjectOptions) (gr *GetObjectReader, err error) {set := s.getHashedSet(object)return set.GetObjectNInfo(ctx, bucket, object, rs, h, opts)
}// GetObjectNInfo - 返回对象信息和对象的读取器(Closer)。当 err != nil 时，返回的读取器始终为 nil。
func (er erasureObjects) GetObjectNInfo(ctx context.Context, bucket, object string, rs *HTTPRangeSpec, h http.Header, opts ObjectOptions) (gr *GetObjectReader, err error) {// 跟踪对象的Erasure Set，用于审计。auditObjectErasureSet(ctx, object, &er)// 这是一个特殊的调用，首先尝试检查SOS-API调用。gr, err = veeamSOSAPIGetObject(ctx, bucket, object, rs, opts)...// 获取锁lock := er.NewNSLock(bucket, object)lkctx, err := lock.GetRLock(ctx, globalOperationTimeout)...// 在元数据验证完毕且读取器准备好读取时释放锁。//// 这是可能的，因为：// - 对于内联对象，xl.meta 已经将数据读取到内存中，随后对 xl.meta 的任何变异都对总体读取操作无关紧要。// - xl.meta 元数据仍在锁()下验证冗余，但是写入响应不需要串行化并发写入者。unlockOnDefer = truensUnlocker = func() { lock.RUnlock(lkctx) }...// 获取对象的文件信息、元数据数组和在线磁盘，如果出现错误则返回对象错误。fi, metaArr, onlineDisks, err := er.getObjectFileInfo(ctx, bucket, object, opts, true)// 如果数据分片不固定，则获取数据分片的磁盘修改时间，并检查是否需要将某些磁盘标记为离线。if !fi.DataShardFixed() {diskMTime := pickValidDiskTimeWithQuorum(metaArr, fi.Erasure.DataBlocks)if !diskMTime.Equal(timeSentinel) && !diskMTime.IsZero() {for index := range onlineDisks {if onlineDisks[index] == OfflineDisk {continue}if !metaArr[index].IsValid() {continue}if !metaArr[index].AcceptableDelta(diskMTime, shardDiskTimeDelta) {// 如果磁盘 mTime 不匹配，则被视为过时。// https://github.com/minio/minio/pull/13803//// 仅当我们能够找到跨冗余中最多出现的磁盘 mtime 大致相同时，才会激活此检查。// 允许跳过我们可能认为是错误的那些分片。onlineDisks[index] = OfflineDisk}}}}// 根据文件信息创建对象信息对象。objInfo := fi.ToObjectInfo(bucket, object, opts.Versioned || opts.VersionSuspended)// 如果对象是删除标记，则根据 `VersionID` 判断是否返回文件未找到或不允许的错误信息。if objInfo.DeleteMarker {if opts.VersionID == "" {return &GetObjectReader{ObjInfo: objInfo,}, toObjectErr(errFileNotFound, bucket, object)}// 确保返回对象信息以提供额外信息。return &GetObjectReader{ObjInfo: objInfo,}, toObjectErr(errMethodNotAllowed, bucket, object)}// 如果对象位于远程存储，则获取过渡的对象读取器。if objInfo.IsRemote() {gr, err := getTransitionedObjectReader(ctx, bucket, object, rs, h, objInfo, opts)if err != nil {return nil, err}unlockOnDefer = falsereturn gr.WithCleanupFuncs(nsUnlocker), nil}// 如果对象大小为0，零字节对象甚至不需要进一步初始化管道等。if objInfo.Size == 0 {return NewGetObjectReaderFromReader(bytes.NewReader(nil), objInfo, opts)}// 根据HTTP Range规范和对象信息创建对象读取器。fn, off, length, err := NewGetObjectReader(rs, objInfo, opts)if err != nil {return nil, err}if unlockOnDefer {unlockOnDefer = fi.InlineData()}// 创建等待管道。pr, pw := xioutil.WaitPipe()// 启动一个 goroutine 用于读取对象数据。go func() {// 这里执行读数据pw.CloseWithError(er.getObjectWithFileInfo(ctx, bucket, object, off, length, pw, fi, metaArr, onlineDisks))}()// 用于在出现不完整读取时导致上面的 goroutine 退出的清理函数。pipeCloser := func() {pr.CloseWithError(nil)}if !unlockOnDefer {return fn(pr, h, pipeCloser, nsUnlocker)}return fn(pr, h, pipeCloser)
}func (er erasureObjects) getObjectFileInfo(ctx context.Context, bucket, object string, opts ObjectOptions, readData bool) (fi FileInfo, metaArr []FileInfo, onlineDisks []StorageAPI, err error) {disks := er.getDisks()var errs []error// Read metadata associated with the object from all disks.if opts.VersionID != "" {// 向所有节点发起元数据读取请求，如果失败节点超过一半，则返回读失败metaArr, errs = readAllFileInfo(ctx, disks, bucket, object, opts.VersionID, readData)} else {metaArr, errs = readAllXL(ctx, disks, bucket, object, readData, opts.InclFreeVersions, true)}// 根据元数据信息确定对象读取readQuorum（datablocks大小，即数据块个数）readQuorum, _, err := objectQuorumFromMeta(ctx, metaArr, errs, er.defaultParityCount)if err != nil {// 根据错误信息判断元数据是否满足quorum机制，if errors.Is(err, errErasureReadQuorum) && !strings.HasPrefix(bucket, minioMetaBucket) {_, derr := er.deleteIfDangling(ctx, bucket, object, metaArr, errs, nil, opts)if derr != nil {err = derr}}return fi, nil, nil, toObjectErr(err, bucket, object)}if reducedErr := reduceReadQuorumErrs(ctx, errs, objectOpIgnoredErrs, readQuorum); reducedErr != nil {if errors.Is(reducedErr, errErasureReadQuorum) && !strings.HasPrefix(bucket, minioMetaBucket) {// 如果不满足则会判断是否为垃圾数据 针对垃圾数据执行数据删除操作_, derr := er.deleteIfDangling(ctx, bucket, object, metaArr, errs, nil, opts)if derr != nil {reducedErr = derr}}return fi, nil, nil, toObjectErr(reducedErr, bucket, object)}// List all online disks.onlineDisks, modTime, etag := listOnlineDisks(disks, metaArr, errs, readQuorum)// Pick latest valid metadata.// 如果满足quorum机制，则读取元信息成功fi, err = pickValidFileInfo(ctx, metaArr, modTime, etag, readQuorum)if err != nil {return fi, nil, nil, err}if !fi.Deleted && len(fi.Erasure.Distribution) != len(onlineDisks) {err := fmt.Errorf("unexpected file distribution (%v) from online disks (%v), looks like backend disks have been manually modified refusing to heal %s/%s(%s)",fi.Erasure.Distribution, onlineDisks, bucket, object, opts.VersionID)logger.LogOnceIf(ctx, err, "get-object-file-info-manually-modified")return fi, nil, nil, toObjectErr(err, bucket, object, opts.VersionID)}filterOnlineDisksInplace(fi, metaArr, onlineDisks)// if one of the disk is offline, return right here no need// to attempt a heal on the object.if countErrs(errs, errDiskNotFound) > 0 {return fi, metaArr, onlineDisks, nil}// 判断对象是否有缺失的block，var missingBlocks intfor i, err := range errs {if err != nil && errors.Is(err, errFileNotFound) {missingBlocks++continue}// verify metadata is valid, it has similar erasure info// as well as common modtime, if modtime is not possible// verify if it has common "etag" atleast.if metaArr[i].IsValid() && metaArr[i].Erasure.Equal(fi.Erasure) {ok := metaArr[i].ModTime.Equal(modTime)if modTime.IsZero() || modTime.Equal(timeSentinel) {ok = etag != "" && etag == fi.Metadata["etag"]}if ok {continue}} // in all other cases metadata is corrupt, do not read from it.metaArr[i] = FileInfo{}onlineDisks[i] = nilmissingBlocks++}// if missing metadata can be reconstructed, attempt to reconstruct.// additionally do not heal delete markers inline, let them be// healed upon regular heal process.// 如果可修复 且有missingBlocks则后台异步发起修复（文件缺失修复） 不修复Deleted if !fi.Deleted && missingBlocks > 0 && missingBlocks < readQuorum {globalMRFState.addPartialOp(partialOperation{bucket:    bucket,object:    object,versionID: fi.VersionID,queued:    time.Now(),setIndex:  er.setIndex,poolIndex: er.poolIndex,})}return fi, metaArr, onlineDisks, nil
}

getObjectWithFileInfo

func (er erasureObjects) getObjectWithFileInfo(ctx context.Context, bucket, object string, startOffset int64, length int64, writer io.Writer, fi FileInfo, metaArr []FileInfo, onlineDisks []StorageAPI) error {// Reorder online disks based on erasure distribution order.// Reorder parts metadata based on erasure distribution order.// 根据数据分布对disk进行排序onlineDisks, metaArr = shuffleDisksAndPartsMetadataByIndex(onlineDisks, metaArr, fi)// For negative length read everything.if length < 0 {length = fi.Size - startOffset}// Reply back invalid range if the input offset and length fall out of range.if startOffset > fi.Size || startOffset+length > fi.Size {logger.LogIf(ctx, InvalidRange{startOffset, length, fi.Size}, logger.Application)return InvalidRange{startOffset, length, fi.Size}}// Get start part index and offset.// 获取开始部分索引和偏移量。partIndex, partOffset, err := fi.ObjectToPartOffset(ctx, startOffset)if err != nil {return InvalidRange{startOffset, length, fi.Size}}// Calculate endOffset according to length// 计算 endoffsetendOffset := startOffsetif length > 0 {endOffset += length - 1}// Get last part index to read given length.// 获取最后一部分索引来读取给定的长度。lastPartIndex, _, err := fi.ObjectToPartOffset(ctx, endOffset)if err != nil {return InvalidRange{startOffset, length, fi.Size}}// 读取数据并进行ec重建var totalBytesRead int64erasure, err := NewErasure(ctx, fi.Erasure.DataBlocks, fi.Erasure.ParityBlocks, fi.Erasure.BlockSize)if err != nil {return toObjectErr(err, bucket, object)}var healOnce sync.Oncefor ; partIndex <= lastPartIndex; partIndex++ {if length == totalBytesRead {break}partNumber := fi.Parts[partIndex].Number// Save the current part name and size.partSize := fi.Parts[partIndex].SizepartLength := partSize - partOffset// partLength should be adjusted so that we don't write more data than what was requested.if partLength > (length - totalBytesRead) {partLength = length - totalBytesRead}tillOffset := erasure.ShardFileOffset(partOffset, partLength, partSize)// Get the checksums of the current part.readers := make([]io.ReaderAt, len(onlineDisks))prefer := make([]bool, len(onlineDisks))for index, disk := range onlineDisks {if disk == OfflineDisk {continue}if !metaArr[index].IsValid() {continue}if !metaArr[index].Erasure.Equal(fi.Erasure) {continue}checksumInfo := metaArr[index].Erasure.GetChecksumInfo(partNumber)partPath := pathJoin(object, metaArr[index].DataDir, fmt.Sprintf("part.%d", partNumber))// 直接读取内存构造 readerreaders[index] = newBitrotReader(disk, metaArr[index].Data, bucket, partPath, tillOffset,checksumInfo.Algorithm, checksumInfo.Hash, erasure.ShardSize())// Prefer local disksprefer[index] = disk.Hostname() == ""}written, err := erasure.Decode(ctx, writer, readers, partOffset, partLength, partSize, prefer)// Note: we should not be defer'ing the following closeBitrotReaders() call as// we are inside a for loop i.e if we use defer, we would accumulate a lot of open files by the time// we return from this function.closeBitrotReaders(readers)if err != nil {// If we have successfully written all the content that was asked// by the client, but we still see an error - this would mean// that we have some parts or data blocks missing or corrupted// - attempt a heal to successfully heal them for future calls.if written == partLength {var scan madmin.HealScanModeswitch {case errors.Is(err, errFileNotFound):// 文件缺失：修复类型为HealNormalScanscan = madmin.HealNormalScancase errors.Is(err, errFileCorrupt):// 数据损坏：修复类型为HealDeepScanscan = madmin.HealDeepScan}switch scan {case madmin.HealNormalScan, madmin.HealDeepScan:healOnce.Do(func() {// 如果读取到期望数据大小但读取过程中发现有数据缺失或损坏，// 则会后台异步发起修复，不影响数据的正常读取globalMRFState.addPartialOp(partialOperation{bucket:    bucket,object:    object,versionID: fi.VersionID,queued:    time.Now(),setIndex:  er.setIndex,poolIndex: er.poolIndex,})})// Healing is triggered and we have written// successfully the content to client for// the specific part, we should `nil` this error// and proceed forward, instead of throwing errors.err = nil}}if err != nil {return toObjectErr(err, bucket, object)}}for i, r := range readers {if r == nil {onlineDisks[i] = OfflineDisk}}// Track total bytes read from disk and written to the client.totalBytesRead += partLength// partOffset will be valid only for the first part, hence reset it to 0 for// the remaining parts.partOffset = 0} // End of read all parts loop.// Return success.return nil
}

数据巡检

数据巡检主要做以下事情：

• 发现缺失的数据，并尝试将其修复，无法修复的数据（垃圾数据）则会进行清理
• 统计计量信息，如文件数、存储量、桶个数等

巡检时候会在每块磁盘上对所有bucket中的数据进行巡检，这里主要介绍下巡检是如何发现待修复数据并执行修复？

• 扫描对象信息时：如果发现数据缺失或数据损坏则会快速或深度修复（深度扫描会校验数据文件是否完整，而快速扫描则是检查数据是否缺失，巡检时是否发起深度巡检是在服务启动配置中设置的），不是每一次的巡检都会发起修复，通常是每巡检一定轮数会发起一次，这里的修复是立即执行的；
• 跟上一次巡检结果对比：比如上次巡检发现有文件A，这次巡检却没有找到文件A，满足一定条件则会发起修复操作，这里的巡检是先投递修补消息，异步修复。

每次巡检都会将巡检的结果缓存在本地，下次巡检与之对比

// cmd/data-scanner.go的runDataScanner方法
// runDataScanner 将启动一个数据扫描器。
// 该函数将阻塞，直到上下文被取消。
// 每个集群只能运行一个扫描器。
func runDataScanner(ctx context.Context, objAPI ObjectLayer) {ctx, cancel := globalLeaderLock.GetLock(ctx)defer cancel()// 加载当前的布隆周期信息var cycleInfo currentScannerCycle// 读配置buf, _ := readConfig(ctx, objAPI, dataUsageBloomNamePath)if len(buf) == 8 {cycleInfo.next = binary.LittleEndian.Uint64(buf)} else if len(buf) > 8 {cycleInfo.next = binary.LittleEndian.Uint64(buf[:8])buf = buf[8:]_, err := cycleInfo.UnmarshalMsg(buf)logger.LogIf(ctx, err)}scannerTimer := time.NewTimer(scannerCycle.Load())defer scannerTimer.Stop()defer globalScannerMetrics.setCycle(nil)for {select {case <-ctx.Done():returncase <-scannerTimer.C:// 重置计时器以进行下一个周期。// 如果扫描器需要更长时间，我们会立即开始。scannerTimer.Reset(scannerCycle.Load())stopFn := globalScannerMetrics.log(scannerMetricScanCycle)cycleInfo.current = cycleInfo.nextcycleInfo.started = time.Now()globalScannerMetrics.setCycle(&cycleInfo)// 读取后台修复信息// backgroundHealInfo[//		bitrotStartTime,bitrotStartCycle,currentScanMode{// 		HealNormalScan,HealDeepScan// }]bgHealInfo := readBackgroundHealInfo(ctx, objAPI)// 获取当前扫描模式scanMode := getCycleScanMode(cycleInfo.current, bgHealInfo.BitrotStartCycle, bgHealInfo.BitrotStartTime)if bgHealInfo.CurrentScanMode != scanMode {// 如果当前扫描模式与新的扫描模式不同，则更新后台修复信息newHealInfo := bgHealInfonewHealInfo.CurrentScanMode = scanModeif scanMode == madmin.HealDeepScan {newHealInfo.BitrotStartTime = time.Now().UTC()newHealInfo.BitrotStartCycle = cycleInfo.current}// 更新健康扫描模式saveBackgroundHealInfo(ctx, objAPI, newHealInfo)}// 在启动下一个周期前等待一段时间results := make(chan DataUsageInfo, 1)// 将存储在gui通道results上发送的所有对象，直到关闭 => saveConfig// 每次巡检都会将巡检的结果缓存在本地，下次巡检与之对比go storeDataUsageInBackend(ctx, objAPI, results)// 走 objAPI 实现 ->server 启动的: erasureServerPools// 对桶 对 disk 做扫描,并更新结果,通过 resultserr := objAPI.NSScanner(ctx, results, uint32(cycleInfo.current), scanMode)logger.LogIf(ctx, err)res := map[string]string{"cycle": strconv.FormatUint(cycleInfo.current, 10)}if err != nil {res["error"] = err.Error()}stopFn(res)if err == nil {// 存储新的周期信息cycleInfo.next++cycleInfo.current = 0cycleInfo.cycleCompleted = append(cycleInfo.cycleCompleted, time.Now())if len(cycleInfo.cycleCompleted) > dataUsageUpdateDirCycles {cycleInfo.cycleCompleted = cycleInfo.cycleCompleted[len(cycleInfo.cycleCompleted)-dataUsageUpdateDirCycles:]}globalScannerMetrics.setCycle(&cycleInfo)tmp := make([]byte, 8, 8+cycleInfo.Msgsize())// 为了向后兼容，存储周期信息binary.LittleEndian.PutUint64(tmp, cycleInfo.next)tmp, _ = cycleInfo.MarshalMsg(tmp)err = saveConfig(ctx, objAPI, dataUsageBloomNamePath, tmp)logger.LogIf(ctx, err)}}}
}

api 层

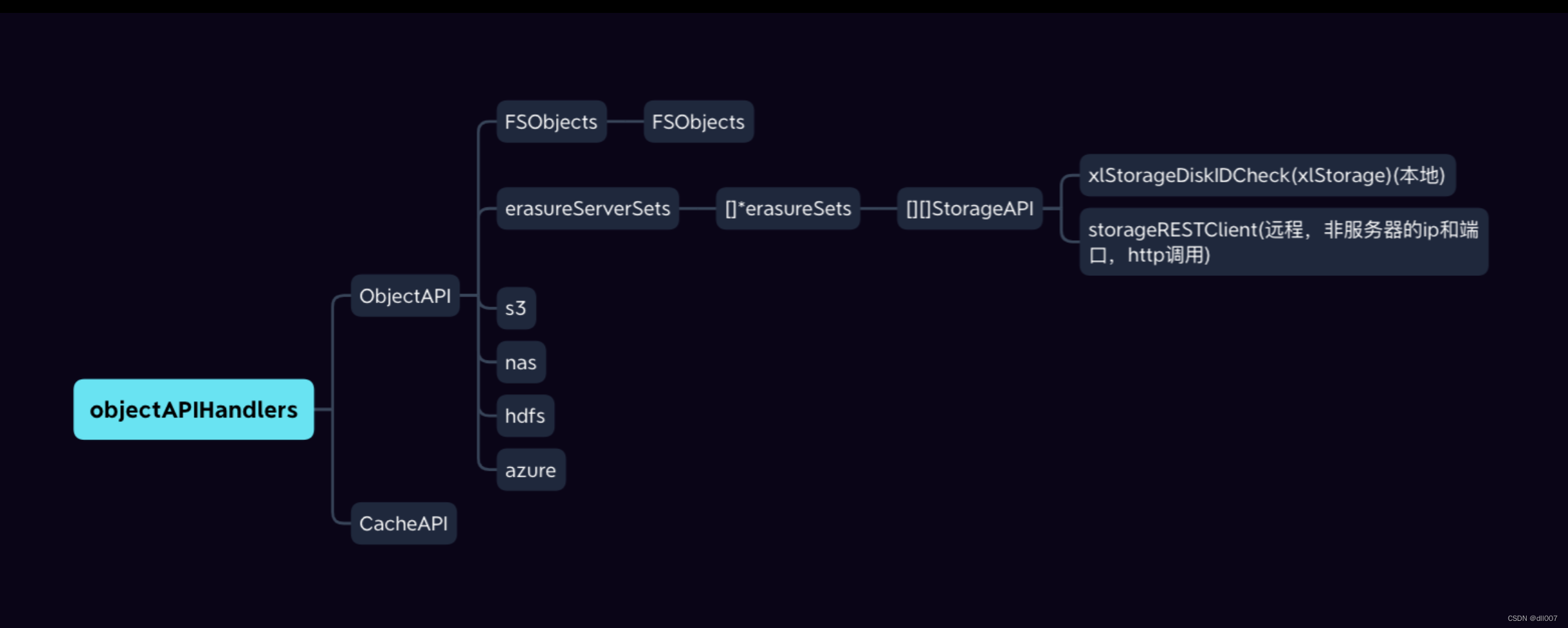

api层调用层级结构如图，从图中我们可以看出,

1. 无论是 gateway 还是 server 模式都是通过实现 ObjectAPI 这个interface来进行服务
2. 在objectAPIHandlers这一层面，主要是做了一些检查，实际针对内容处理是放在ObjectAPI这个interface的实现层，以putObject为例,做了以下内容
   1. 检查 http 头字段
   2. 验证签名
   3. bucket容量检查

main->cmd->server_main -> handler, err := configureServerHandler(globalEndpoints)
-> 注册 router
// configureServer handler returns final handler for the http server.
func configureServerHandler(endpointServerPools EndpointServerPools) (http.Handler, error) {// Initialize router. `SkipClean(true)` stops minio/mux from// normalizing URL path minio/minio#3256router := mux.NewRouter().SkipClean(true).UseEncodedPath()// Initialize distributed NS lock.if globalIsDistErasure {registerDistErasureRouters(router, endpointServerPools)}// Add Admin router, all APIs are enabled in server mode.registerAdminRouter(router, true)// Add healthCheck routerregisterHealthCheckRouter(router)// Add server metrics routerregisterMetricsRouter(router)// Add STS router always.registerSTSRouter(router)// Add KMS routerregisterKMSRouter(router)// Add API router// 注册怎么操作 objectregisterAPIRouter(router)router.Use(globalMiddlewares...)return router, nil
}// objectAPIHandler implements and provides http handlers for S3 API.
type objectAPIHandlers struct {ObjectAPI func() ObjectLayerCacheAPI  func() CacheObjectLayer
}// registerAPIRouter - registers S3 compatible APIs.
// 符合 s3 协议
func registerAPIRouter(router *mux.Router) {// Initialize API.// 初始化objectAPIHandlerapi := objectAPIHandlers{//  挂载实现的ObjectLayer <= 在初始化ObjectLayer后,会 setObjectLayer(o ObjectLayer)ObjectAPI: newObjectLayerFn,CacheAPI:  newCachedObjectLayerFn,}// API Router// '/' 分割 uriapiRouter := router.PathPrefix(SlashSeparator).Subrouter()var routers []*mux.Routerfor _, domainName := range globalDomainNames {if IsKubernetes() {routers = append(routers, apiRouter.MatcherFunc(func(r *http.Request, match *mux.RouteMatch) bool {host, _, err := net.SplitHostPort(getHost(r))if err != nil {host = r.Host}// Make sure to skip matching minio.<domain>` this is// specifically meant for operator/k8s deployment// The reason we need to skip this is for a special// usecase where we need to make sure that// minio.<namespace>.svc.<cluster_domain> is ignored// by the bucketDNS style to ensure that path style// is available and honored at this domain.//// All other `<bucket>.<namespace>.svc.<cluster_domain>`// makes sure that buckets are routed through this matcher// to match for `<bucket>`return host != minioReservedBucket+"."+domainName}).Host("{bucket:.+}."+domainName).Subrouter())} else {// 读取 path 里的匹配的数据到 bucket 参数里// 注册新的 router,以 domainNamerouters = append(routers, apiRouter.Host("{bucket:.+}."+domainName).Subrouter())}}// 最后的匹配{bucket}的 routerrouters = append(routers, apiRouter.PathPrefix("/{bucket}").Subrouter())gz, err := gzhttp.NewWrapper(gzhttp.MinSize(1000), gzhttp.CompressionLevel(gzip.BestSpeed))if err != nil {// Static params, so this is very unlikely.logger.Fatal(err, "Unable to initialize server")}for _, router := range routers {// Register all rejected object APIsfor _, r := range rejectedObjAPIs {t := router.Methods(r.methods...).HandlerFunc(collectAPIStats(r.api, httpTraceAll(notImplementedHandler))).Queries(r.queries...)t.Path(r.path)}// Object operations.... // GetObject// 如果判断出 apistats 是 getobject => 请求走该处理链// path匹配到的参数到object变量里router.Methods(http.MethodGet).Path("/{object:.+}").HandlerFunc(collectAPIStats("getobject", maxClients(gz(httpTraceHdrs(api.GetObjectHandler)))))// PutObjectrouter.Methods(http.MethodPut).Path("/{object:.+}").HandlerFunc(collectAPIStats("putobject", maxClients(gz(httpTraceHdrs(api.PutObjectHandler)))))....}

http中间件

这里的请求 middleware 是采用一层套一层来实现的

func middleware1(f http.HandlerFunc) http.HandlerFunc {// 返回一个包装后的中间件HandlerFunc函数return func(w http.ResponseWriter, r *http.Request) {... 自己的逻辑f(w,r) ...}
}

maxclients

// maxClients throttles the S3 API calls
func maxClients(f http.HandlerFunc) http.HandlerFunc {return func(w http.ResponseWriter, r *http.Request) {// 记录全局的HTTP统计信息，增加S3请求的计数globalHTTPStats.incS3RequestsIncoming()// 检查HTTP请求头中是否包含名为globalObjectPerfUserMetadata的字段if r.Header.Get(globalObjectPerfUserMetadata) == "" {// 如果不包含该字段，检查全局服务是否被冻结if val := globalServiceFreeze.Load(); val != nil {if unlock, ok := val.(chan struct{}); ok && unlock != nil {// 等待解冻，直到服务解冻为止select {case <-unlock:case <-r.Context().Done():// 如果客户端取消了请求，就不需要一直等待return}}}}// 获取用于请求的池和请求的截止时间pool, deadline := globalAPIConfig.getRequestsPool()if pool == nil {// 说明没有最大客户端限制// 如果请求池为空，直接调用处理函数并返回f.ServeHTTP(w, r)return}// 增加等待队列中的请求数globalHTTPStats.addRequestsInQueue(1)// 设置请求跟踪信息if tc, ok := r.Context().Value(mcontext.ContextTraceKey).(*mcontext.TraceCtxt); ok {tc.FuncName = "s3.MaxClients"}// 创建一个截止时间计时器deadlineTimer := time.NewTimer(deadline)defer deadlineTimer.Stop()select {// 等待 pool 中 的 chan <- 令牌桶case pool <- struct{}{}:// 如果成功从池中获取了令牌，释放令牌并处理请求defer func() { <-pool }()globalHTTPStats.addRequestsInQueue(-1)f.ServeHTTP(w, r)case <-deadlineTimer.C:// 如果在截止时间内没有获取到令牌，返回HTTP请求超时错误响应writeErrorResponse(r.Context(), w,errorCodes.ToAPIErr(ErrTooManyRequests),r.URL)globalHTTPStats.addRequestsInQueue(-1)returncase <-r.Context().Done():// 当客户端在获取S3处理程序状态码响应之前断开连接时，将状态码设置为499// 这样可以正确记录和跟踪此请求w.WriteHeader(499)globalHTTPStats.addRequestsInQueue(-1)return}}
}

api.GetObjectHandler

猜测:肯定会去调真正的存储层实现: ObjectLayer 或者ObjectCacheLayer

// GetObjectHandler - GET Object
// ----------
// This implementation of the GET operation retrieves object. To use GET,
// you must have READ access to the object.
func (api objectAPIHandlers) GetObjectHandler(w http.ResponseWriter, r *http.Request) {ctx := newContext(r, w, "GetObject")defer logger.AuditLog(ctx, w, r, mustGetClaimsFromToken(r))bucket := vars["bucket"]object, err := unescapePath(vars["object"])objectAPI := api.ObjectAPI()getObjectNInfo := objectAPI.GetObjectNInfoif api.CacheAPI() != nil {getObjectNInfo = api.CacheAPI().GetObjectNInfo}// 对读取到的对象返回的响应,做层层封装处理
}

Minio的Java服务中间件

通过MinIO整合SpringBoot实现OSS服务器组件搭建和功能实现

• Minio是Apache License v2.0下发布的对象存储服务器。它与Amazon S3云存储服务兼容。它最适合存储非结构化数据，如照片，视频，日志文件，备份和容器/ VM映像。对象的大小可以从几KB到最大5TB。

• Minio服务器足够轻，可以与应用程序堆栈捆绑在一起，类似于NodeJS，Redis和MySQL。

• github 地址: https://github.com/dll02/assemble-platform/tree/main/assemble-platform-minioClient

//使用了 client 包<dependency><groupId>com.jvm123</groupId><artifactId>minio-spring-boot-starter</artifactId><version>1.2.1</version><exclusions><exclusion><artifactId>guava</artifactId><groupId>com.google.guava</groupId></exclusion></exclusions></dependency>// 其他代码很简单
@Slf4j
@Service
public class MinioHttpOssService {@AutowiredMinioFileService fileStoreService;/*** bucket* @param bucketName* @return*/public ResultResponse create(@RequestParam("bucketName") String bucketName){return fileStoreService.createBucket(bucketName)? ResultResponse.success(): ResultResponse.failure("创建oss bucket失败！");}/*** 存储文件* @param file* @param bucketName* @return*/public ResultResponse upload(@RequestParam("file") MultipartFile file, @RequestParam("bucketName") String bucketName){try {fileStoreService.save(bucketName,file.getInputStream(),file.getOriginalFilename());} catch (IOException e) {log.error("upload the file is error",e);return ResultResponse.failure("upload the file is error");}return ResultResponse.success();}/*** 删除文件* @param bucketName* @param bucketName* @return*/public ResultResponse delete(@RequestParam("bucketName") String bucketName, @RequestParam("fileName") String fileName){return fileStoreService.delete(bucketName,fileName)? ResultResponse.success(): ResultResponse.failure("删除oss bucket文件失败！");}/*** 下载文件* @param bucketName* @param bucketName* @return*/public void download(HttpServletResponse httpServletResponse, @RequestParam("bucketName") String bucketName, @RequestParam("fileName") String fileName){try (InputStream inputStream = fileStoreService.getStream(bucketName, fileName)){httpServletResponse.addHeader("Content-Disposition","attachment;filename="+fileName);ServletOutputStream os = httpServletResponse.getOutputStream();fileStoreService.writeTo(bucketName, fileName, os);} catch (IOException e) {log.error("download file is failure!",e);}}}// 走到 client 包public String save(String bucket, InputStream is, String destFileName) {if (bucket != null && bucket.length() > 0) {try {// 获取一个MinioClient链接MinioClient minioClient = this.connect();this.checkBucket(minioClient, bucket);minioClient.putObject(bucket, destFileName, is, (Long)null, (Map)null, (ServerSideEncryption)null, (String)null);return destFileName;} catch (NoSuchAlgorithmException | IOException | XmlPullParserException | InvalidKeyException | MinioException var5) {LOGGER.error("error: {}", var5.getMessage());return null;}} else {LOGGER.error("Bucket name cannot be blank.");return null;}}//  minioClient.putObject 最后一定会发起一个 tcp 请求到 minio 服务
// 封装为符合 s3 协议的请求
HttpResponse response = execute(Method.PUT, region, bucketName, objectName,headerMap, queryParamMap,data, length);
Response response = this.httpClient.newCall(request).execute();

感言&&参考资料:

minio 的项目是很庞大复杂的,尤其是关于对给类云的协议的兼容解析封装,对Erasure Code擦除码底层存储的实现,都非常的晦涩难懂,功力有限,暂时更新到这里,后面有时间精力和兴趣再更新,有缘再见.

• 浅谈对象之MinIO源码篇
• minIO server源码分析
• Erasure-Code-擦除码-1-原理篇
